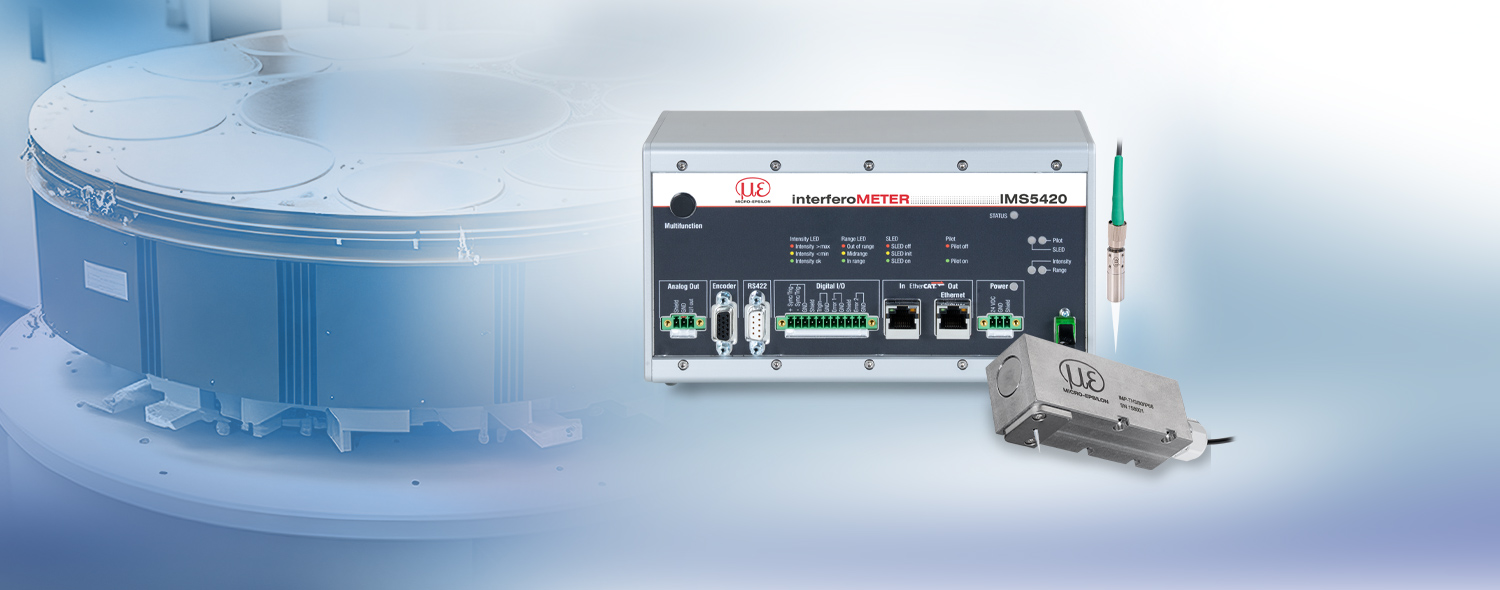

interferoMETER IMS5420-TH

ืžื“ื™ื“ืช ืขื•ื‘ื™ ืžื“ื•ื™ืงืช ืฉืœ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ

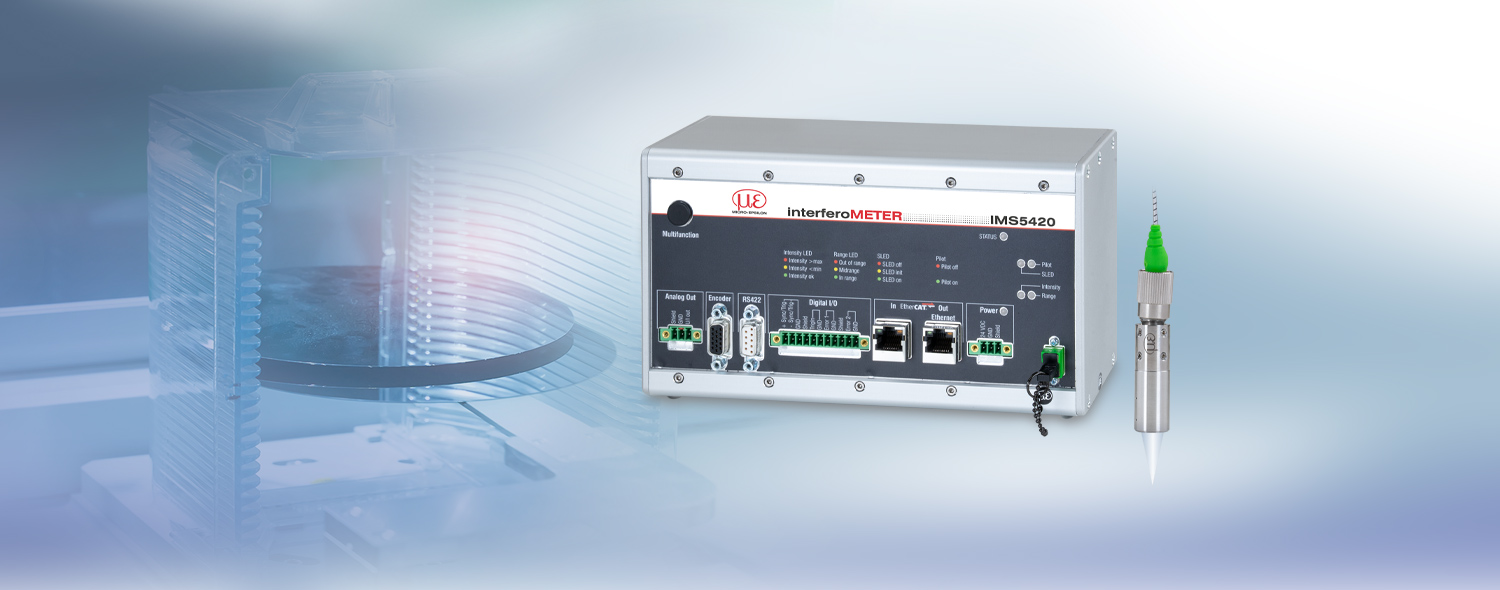

ืื™ื ื˜ืจืคืจื•ืžื˜ืจ ืื•ืจ ืœื‘ืŸ ืœื‘ื“ื™ืงื” ืžื“ื•ื™ืงืช ืฉืœ ืคืจื•ืกื•ืช

ื”-IMSโ€5420 ื”ื•ื ืื™ื ื˜ืจืคืจื•ืžื˜ืจ ืื•ืจ ืœื‘ืŸ ื‘ืขืœ ื‘ื™ืฆื•ืขื™ื ื’ื‘ื•ื”ื™ื ืœืžื“ื™ื“ืช ืขื•ื‘ื™ ืœืœื ืžื’ืข ืฉืœ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืžื•ื ื•ืงืจื™ืกื˜ืœื™ื•ืช. ืœื‘ืงืจ ื™ืฉ ื“ื™ื•ื“ื” ืกื•ืคืจ-ืœื•ืžื™ื ืกื ื˜ื™ืช (SLED) ืจื—ื‘ืช ืคืก ืขื ื˜ื•ื•ื— ืื•ืจื›ื™ ื’ืœ ืฉืœ 1,100 ื ื ื•ืžื˜ืจ. ื–ื” ืžืืคืฉืจ ืžื“ื™ื“ืช ืขื•ื‘ื™ ืฉืœ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืœื ืžืื•ืœื—ื•ืช, ืžืื•ืœื—ื•ืช ื•ืžืื•ืœื—ื•ืช ืžืื•ื“ ืขื ืžืขืจื›ืช ืžื“ื™ื“ื” ืื—ืช ื‘ืœื‘ื“. ื”-IMSโ€5420 ืžืฉื™ื’ ื™ืฆื™ื‘ื•ืช ืื•ืช ืฉืœ ืคื—ื•ืช ืž-1 ื ื ื•ืžื˜ืจ. ื ื™ืชืŸ ืœืžื“ื•ื“ ืืช ื”ืขื•ื‘ื™ ืžืžืจื—ืง ืฉืœ 24 ืž"ืž.

Get in touch with us!
Download now: catalogs, manuals, software
logo

ืžืืคื™ื™ื ื™ื

  1. ืžื“ื™ื“ืช ืขื•ื‘ื™ ื‘ืจืžืช ื“ื™ื•ืง ื ื ื•ืžื˜ืจื™ืช ืฉืœ ืคืจื•ืกื•ืช ืœื ืžืื•ืœื—ื•ืช, ืžืื•ืœื—ื•ืช ื•ืžืื•ื“ ืžืื•ืœื—ื•ืช
  2. ื™ื›ื•ืœืช ืžื“ื™ื“ืช ืฉื›ื‘ื•ืช ืžืจื•ื‘ื•ืช: ืจื›ื™ืฉื” ืฉืœ ืขื“ 5 ืฉื›ื‘ื•ืช ื‘ืขื•ื‘ื™ SI ืฉืœ 0.05 ืขื“ 1.05 ืž"ืž
  3. ืจื–ื•ืœื•ืฆื™ื” ื’ื‘ื•ื”ื” ื‘ืฆื™ืจ z ืฉืœ 1 ื ื ื•ืžื˜ืจ
  4. ืงืฆื‘ ืžื“ื™ื“ื” ืขื“ 6 ืงื”"ืฆ ืœืžื“ื™ื“ื•ืช ืžื”ื™ืจื•ืช
  5. Ethernet / EtherCAT / RS422 /PROFINET / EtherNet/IP
  6. ืคืจืžื˜ืจื™ื–ืฆื™ื” ืงืœื” ื“ืจืš ืžืžืฉืง ืื™ื ื˜ืจื ื˜ื™
[]
ืฆื•ืจ ืงืฉืจ
Maoz Kain
972-3-5590277+
ืœื™ืฆื™ืจืช ืงืฉืจ
Your request for: {product}
* ืฉื“ื•ืช ื—ื•ื‘ื”
ืื ื• ืžืชื™ื™ื—ืกื™ื ืœืžื™ื“ืข ื‘ื—ืกื™ื•ืŸ ืจื‘. ืื ื ืงืจื ืืช ื”ืฆื”ืจืช ื”ืคืจื˜ื™ื•ืช ืฉืœื ื• (ื‘ืื ื’ืœื™ืช).

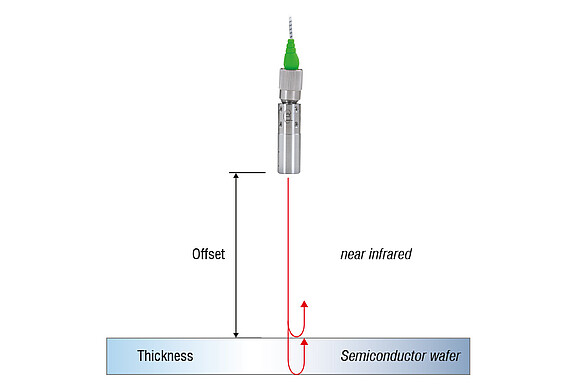

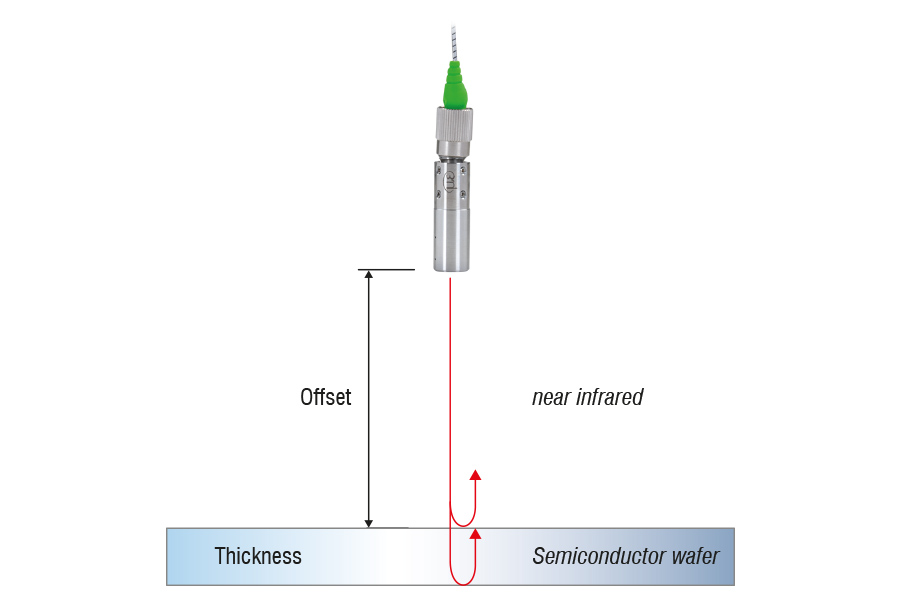

ืžื“ื™ื“ื” ืžื“ื•ื™ื™ืงืช ืฉืœ ืขื•ื‘ื™ ืคืจื•ืกืช ืกื™ืœื™ืงื•ืŸ

ื‘ืฉืœ ื”ืฉืงื™ืคื•ืช ื”ืื•ืคื˜ื™ืช ืฉืœ ืคืจื•ืกื•ืช ื”ืกื™ืœื™ืงื•ืŸ ื‘ื˜ื•ื•ื— ืื•ืจื›ื™ ื’ืœ ืฉืœ 1,100 ื ื ื•ืžื˜ืจ, ื”ืื™ื ื˜ืจืคืจื•ืžื˜ืจื™ื ืฉืœ IMSโ€5420 ื™ื›ื•ืœื™ื ืœื–ื”ื•ืช ืืช ื”ืขื•ื‘ื™ ื‘ืžื“ื•ื™ืง. ื‘ื˜ื•ื•ื— ืื•ืจืš ื’ืœ ื–ื”, ื”ืŸ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืœื ืžืื•ืœื—ื•ืช ื•ื”ืŸ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืžืื•ืœื—ื•ืช ืžืกืคืงื•ืช ืฉืงื™ืคื•ืช ืžืกืคืงืช. ืœื›ืŸ, ื ื™ืชืŸ ืœื–ื”ื•ืช ืขื•ื‘ื™ ืคืจื•ืกื•ืช ืฉืœ ืขื“ 1.05 ืž"ืž. ืขื•ื‘ื™ ืžืจื•ื•ื— ื”ืื•ื•ื™ืจ ื”ื ื™ืชืŸ ืœืžื“ื™ื“ื” ืžื’ื™ืข ืืฃ ืœ-4 ืž"ืž.

ื”ืื™ื ื˜ืจืคืจื•ืžื˜ืจ IMSโ€5420 ืžืืคืฉืจ ืžื“ื™ื“ืช ืขื•ื‘ื™ ืฉืœ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืœื ืžืื•ืœื—ื•ืช, ืžืื•ืœื—ื•ืช ื•ืžืื•ื“ ืžืื•ืœื—ื•ืช, ื•ื‘ื›ืš ืžืฆื™ืข ืžื’ื•ื•ืŸ ืจื—ื‘ ืฉืœ ื™ื™ืฉื•ืžื™ื. ืžืขืจื›ืช ืžื“ื™ื“ืช ืขื•ื‘ื™ ืคืจื•ืกื•ืช ื–ื• ืื™ื“ื™ืืœื™ืช ืœืžื“ื™ื“ืช ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ื—ื“-ื’ื‘ื™ืฉื™ื•ืช ื‘ืขื•ื‘ื™ ื’ื™ืื•ืžื˜ืจื™ ืฉืœ 500 ืขื“ 1050 ืžื™ืงืจื•ืžื˜ืจ ื•ื–ื™ื”ื•ื ืฉืœ ืขื“ 6 ืžื™ืงืจื•ืžื˜ืจ ฮฉ ืœืก"ืž. ืืคื™ืœื• ืขื ืคืจื•ืกื•ืช ืžืื•ืœื—ื•ืช ื‘ื“ืจื’ื” ื’ื‘ื•ื”ื”, ื ื™ืชืŸ ืœืžื“ื•ื“ ืขื•ื‘ื™ ืฉืœ ืขื“ 0.8 ืž"ืž. ืชื•ืฆืื” ื–ื• ื ื•ื‘ืขืช ืžื™ืจื™ื“ื” ื‘ืฉืงื™ืคื•ืช ืขื ืขืœื™ื™ื” ื‘ืื™ืœื•ื—.

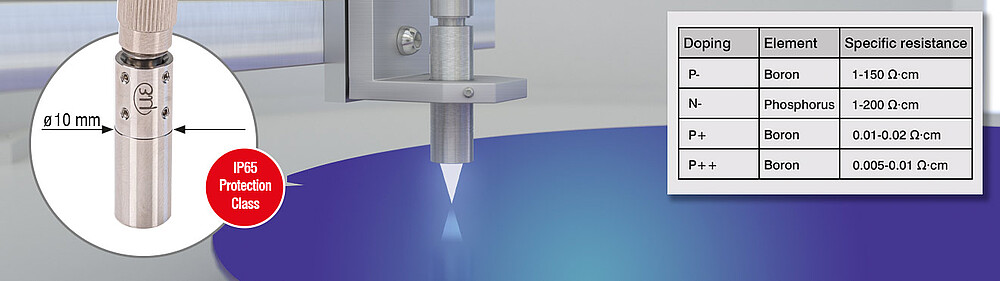

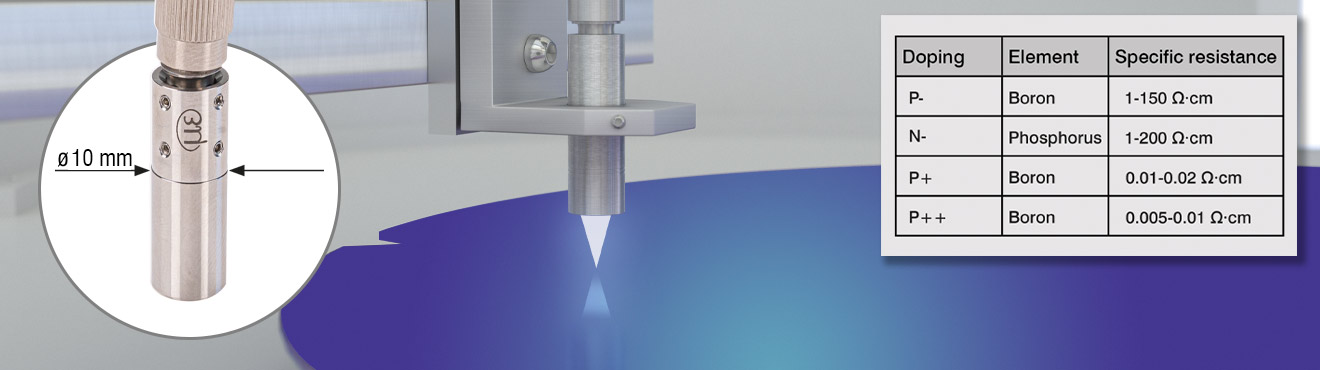

ืžื“ื™ื“ืช ืขื•ื‘ื™ ืฉืœ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ ืœื ืžืื•ืœื—ื•ืช, ืžืื•ืœื—ื•ืช ื•ืžืื•ื“ ืžืื•ืœื—ื•ืช

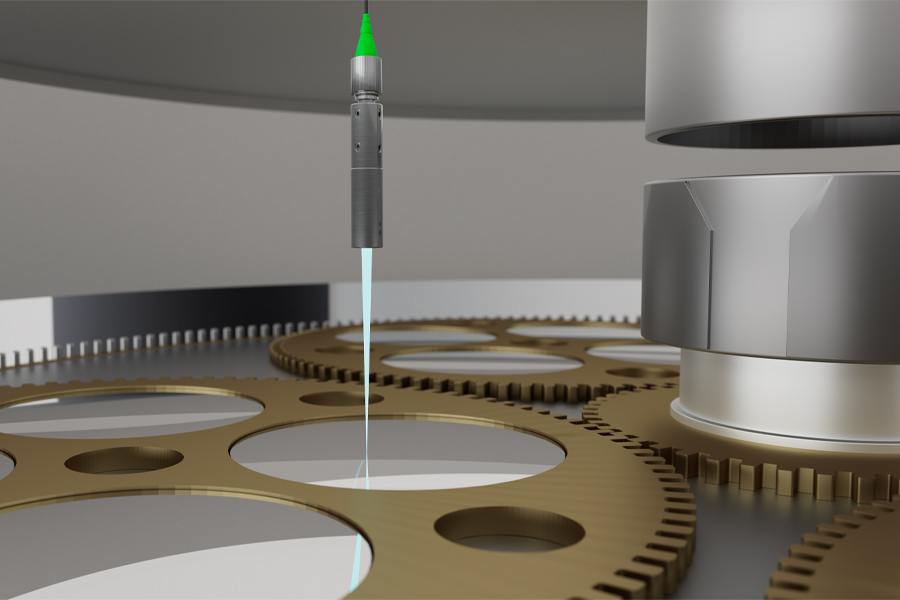

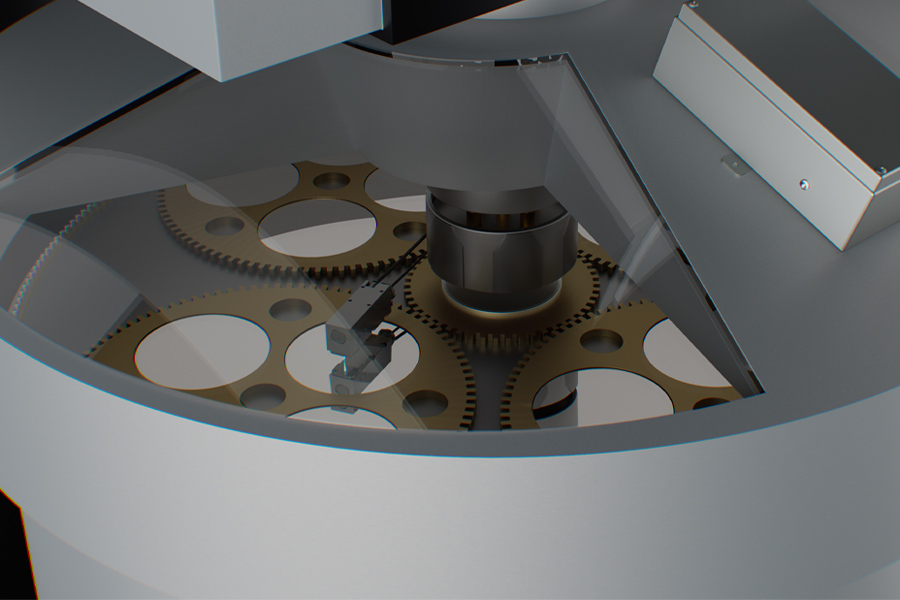

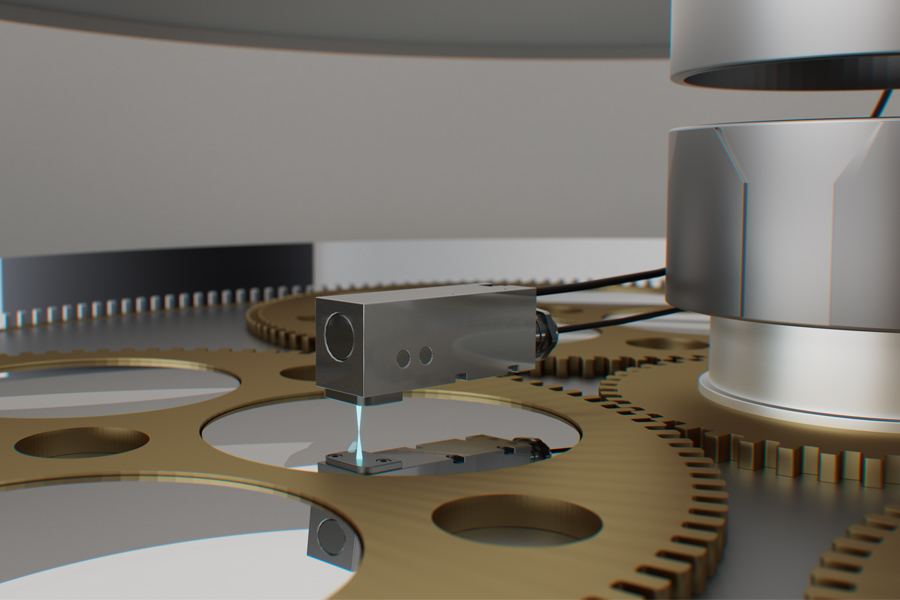

ืžื“ื™ื“ืช ืขื•ื‘ื™ ื‘ืžื”ืœืš ืœื™ื˜ื•ืฉ

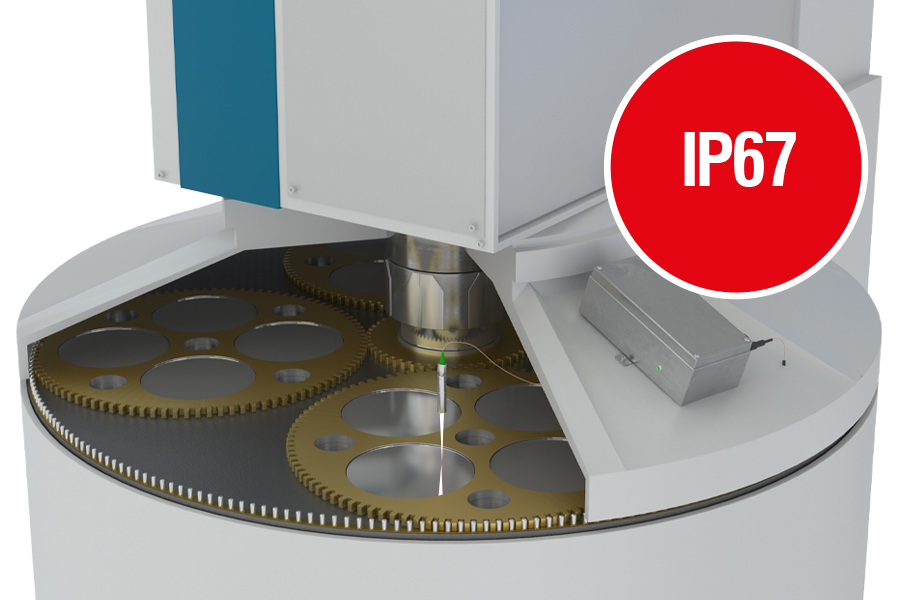

ืžื“ื™ื“ืช ืขื•ื‘ื™ ืžื“ื•ื™ื™ืงืช ื‘ืžื”ืœืš ืœื™ื˜ื•ืฉ

ื‘ื™ื™ืฆื•ืจ ืคืจื•ืกื•ืช ืกื™ืœื™ืงื•ืŸ, ืžื˜ื™ืœ ืกื™ืœื™ืงื•ืŸ ื’ื‘ื™ืฉื™ ื ื—ืชืš ืœืคืจื•ืกื•ืช ื“ืงื•ืช ืฉืœ ื›-1 ืž"ืž. ืœืื—ืจ ืžื›ืŸ, ื”ืคืจื•ืกื•ืช ืขื•ื‘ืจื•ืช ื”ืฉื—ื–ื” ื•ืœื™ื˜ื•ืฉ ืœืงื‘ืœืช ื”ืขื•ื‘ื™ ื•ื”ื’ื™ืžื•ืจ ื”ืจืฆื•ื™ื™ื ืฉืœ ืคื ื™ ื”ืฉื˜ื—. ื›ื“ื™ ืœื”ืฉื™ื’ ื™ืฆื™ื‘ื•ืช ื’ื‘ื•ื”ื” ืฉืœ ื”ืชื”ืœื™ืš, ื ืขืฉื” ืฉื™ืžื•ืฉ ื‘-interferoMETER ืœืžื“ื™ื“ืช ืขื•ื‘ื™ ืžืงื•ื•ื ืช ื‘ืžื›ื•ื ื•ืช ืœื™ื˜ื•ืฉ ื•ื”ืฉื—ื–ื”. ื‘ืฉืœ ืขื™ืฆื•ื‘ื• ื”ืงื•ืžืคืงื˜ื™, ื ื™ืชืŸ ืœืฉืœื‘ ืืช ื”ื—ื™ื™ืฉืŸ ื’ื ื‘ื—ืœืœื™ ื”ืชืงื ื” ืžืฆื•ืžืฆืžื™ื. ืขืจื›ื™ ื”ืขื•ื‘ื™ ืžืฉืžืฉื™ื ืœื‘ืงืจืช ืžื›ื•ื ื•ืช ื•ื›ืŸ ืœื‘ืงืจืช ืื™ื›ื•ืช ืฉืœ ื”ืคืจื•ืกื”.

โ€ โ€Ž โ€< ยฑ100 ื ื ื•ืžื˜ืจ ืœืฉื›ื‘ื” ืื—ืช ืขื“ 5 ืฉื›ื‘ื•ืช IMS5420/IP67-TH24

ื“ื’ืื˜ื•ื•ื— ืžื“ื™ื“ื”/
ืชื—ื™ืœืช ื˜ื•ื•ื— ืžื“ื™ื“ื”		ืœื™ื ืืจื™ื•ืชืžืกืคืจ ืฉื›ื‘ื•ืช ืžื“ื™ื“ื•ืชืชื—ื•ืžื™ ื™ื™ืฉื•ื
IMS5420-TH24โ€0.05 ... 1.05 ืž"ืž (ืขื‘ื•ืจ ืกื™ืœื™ืงื•ืŸ, n=3.82)
โ€ โ€Ž โ€ 0.2 ... 4 ืž"ืž (ืขื‘ื•ืจ ืื•ื•ื™ืจ, nโ€=1) / ื›-24 ืž"ืž ืขื ื˜ื•ื•ื— ืขื‘ื•ื“ื” ืฉืœ ื›-6 ืž"ืž		< ยฑ100 ื ื ื•ืžื˜ืจืฉื›ื‘ื” ืื—ืชืžื“ื™ื“ืช ืขื•ื‘ื™ ืžืงื•ื•ื ืช, ืœืžืฉืœ, ืœืื—ืจ ื”ืฉื—ื–ื” ืื• ืœื™ื˜ื•ืฉ.
IMS5420MP-TH24< ยฑ200 ื ื ื•ืžื˜ืจ ืœืฉื›ื‘ื•ืช ื ื•ืกืคื•ืชืžื“ื™ื“ืช ืขื•ื‘ื™ ืžืงื•ื•ื ืช, ืœืžืฉืœ, ืœื‘ืงืจืช ืื™ื›ื•ืช ืขื•ื‘ื™ ื”ืฆื™ืคื•ื™ ืœืื—ืจ ืฆื™ืคื•ื™
โ€< ยฑ100 ื ื ื•ืžื˜ืจืฉื›ื‘ื” ืื—ืชืžื“ื™ื“ืช ืขื•ื‘ื™ ืžืงื•ื•ื ืช ืชืขืฉื™ื™ืชื™ืช ื‘ืžื”ืœืš ืœื™ื˜ื•ืฉ ื•ื”ืฉื—ื–ื”

ืžืžืฉืงื™ื ืžื•ื“ืจื ื™ื™ื ืœืฉื™ืœื•ื‘ ื‘ืžื›ื•ื ื•ืช ื•ื‘ืžืขืจื›ื•ืช

ื”ื‘ืงืจ ืžืฆื™ืข ืžืžืฉืงื™ื ืžืฉื•ืœื‘ื™ื ื›ื’ื•ืŸ Ethernet, โ€Žโ€EtherCAT ื•-RSโ€422 ื•ื›ืŸ ื—ื™ื‘ื•ืจื™ ืžืงื•ื“ื“ ื ื•ืกืคื™ื, ื™ืฆื™ืื•ืช ืื ืœื•ื’ื™ื•ืช, ื›ื ื™ืกื•ืช ืกื™ื ื›ืจื•ืŸ ื•ื›ื ื™ืกื•ืช ืงืœื˜/ืคืœื˜ ื“ื™ื’ื™ื˜ืœื™ื•ืช. ื›ืฉืžืฉืชืžืฉื™ื ื‘ืžื•ื“ื•ืœื™ ื”ืžืžืฉืง ืฉืœ Micro-Epsilon,โ€Žโ€โ€Ž PROFINET ื•-EthernetIP ื–ืžื™ื ื™ื. ื”ื“ื‘ืจ ืžืืคืฉืจ ืœืื™ื ื˜ืจืคืจื•ืžื˜ืจ ืœื”ืฉืชืœื‘ ื‘ื›ืœ ืžืขืจื›ื•ืช ื”ื‘ืงืจื” ื•ืชื›ื ื™ื•ืช ื”ื™ื™ืฆื•ืจ.
