針對特定應用的電容式感測器
There are applications where the standard versions of capacitive sensors and controllers reach their limits. For these special tasks, we modify your measuring system according to your individual requirements. Common requested modifications include modified designs, target calibration, mounting options, individual cable lengths, modified measuring ranges or sensors with integrated electronics.
採用嵌入式電容技術 (ECT) 的電容式位移感測器
Capacitive sensors with Embedded Capa Technology are designed after an innovative manufacturing process and achieve significantly higher long-term stability. By embedding the electrode in a particularly stable carrier material, significantly better temperature stability is achieved compared to conventional sensor designs. The innovative technology allows different sensor designs to be realized for temperatures from -270 °C to +200 °C.
適用於磁場、極低溫（低溫物理）與真空環境的電容式感測器

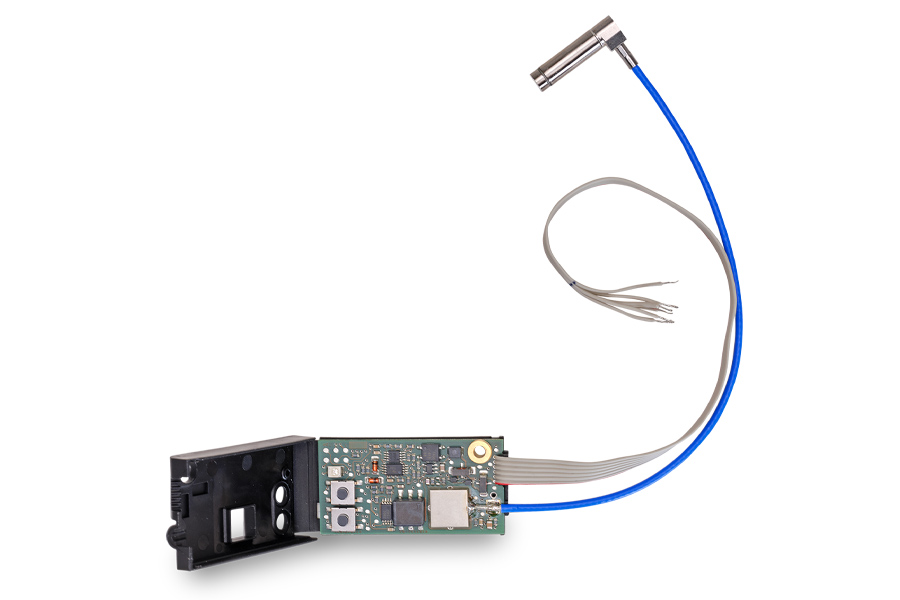

微型感測系統，可完全整合於靠近量測點的位置
- Miniature electronics with a small footprint 50 x 27 x 8.5 mm
- Targeted position control < 0.5 µm using a switch signal
- Quick teach-in of the switching position using the upper and lower limit buttons
- Control range (measuring range) 500 µm
- Application: This system is fully integrated into, e.g., surgical microscopes and is used to stabilize the stands

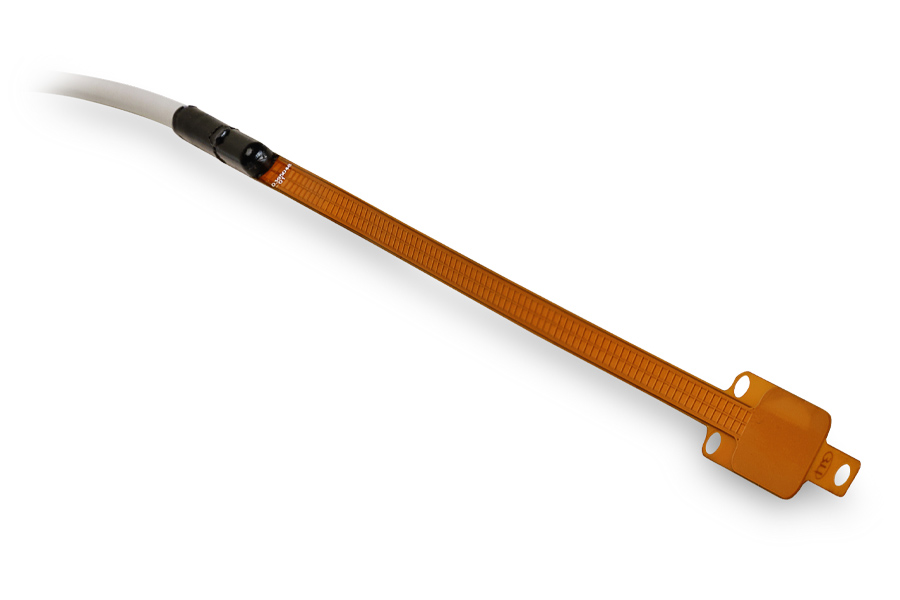

帶柔性導體與 ccx 電纜的薄型柔性感測器
- Optimized for minimum sensor thickness <0.3 mm
- Mounting wings are directly integrated
- Flex conductor connection for positioning
- Max. total length of sensor incl. flex conductor up to the sensor cable transition point: 400 mm
- Application: Monitoring the gap distances in powerful electric motors

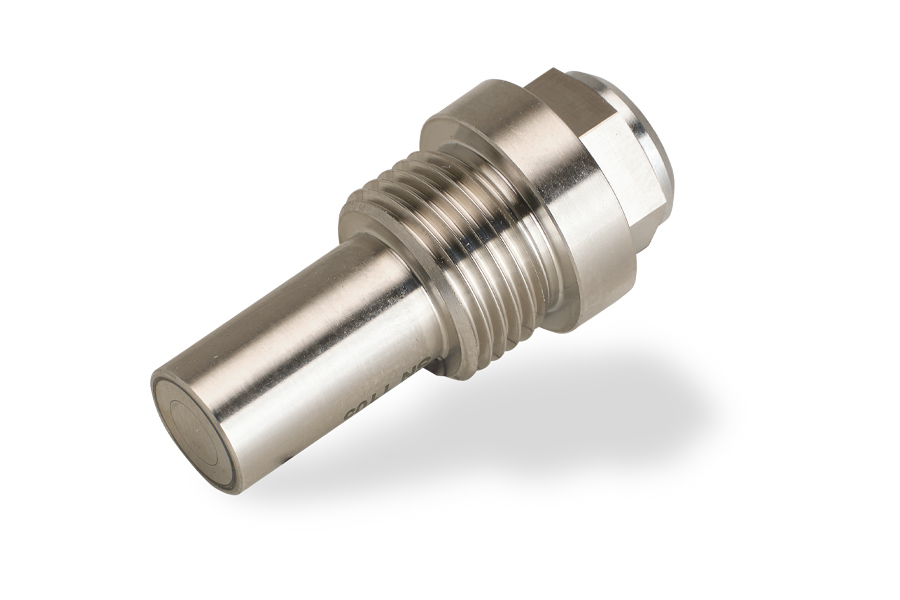

具備所需幾何形狀的感測器，實現簡單且定向的整合
- High-precision 500 µm sensor with customized geometry
- Geometry: flange for easy and ideal positioning in relation to the measuring surface
- Application: Optical elements (lens systems) are aligned in a vacuum / cleanroom using these sensors

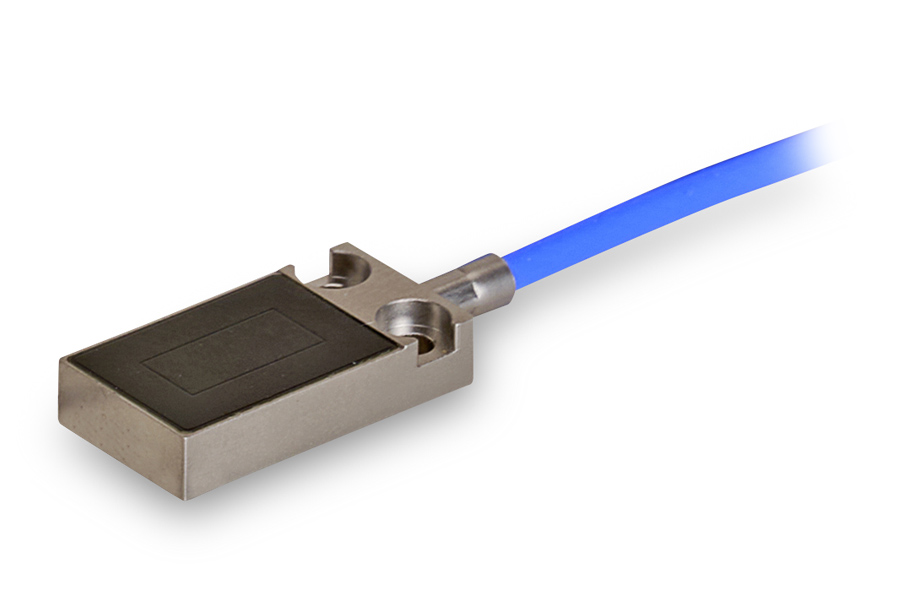

針對批量優化的 CSR 感測器
- Individual form factor adapted to the space available in the system
Rectangular electrode instead of round electrode
Design in flat metal housing - Price-optimized quantity
- Operating temperature 160 °C
- Focus on maximum repeatability for the best possible process control
- Applications: machine / system levelling, alignment of platforms, parallelism control of platforms
